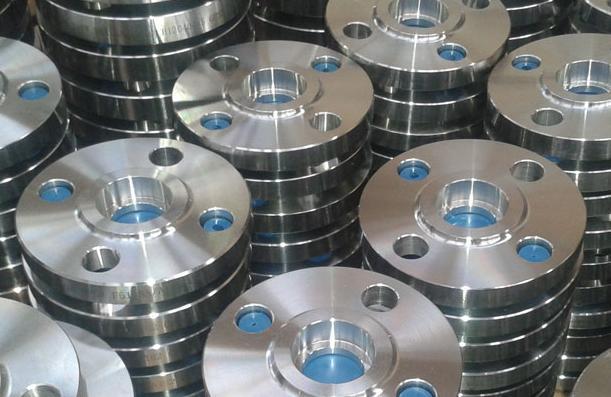

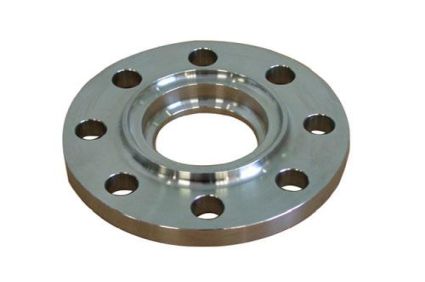

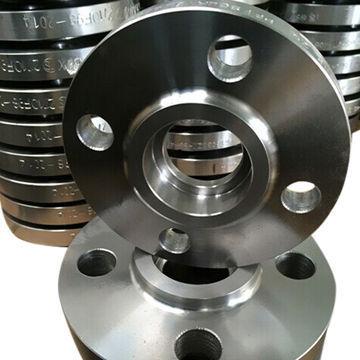

Socket Weld Flange

This is similar to a slip-on Flange in outline, but the bore is counter- bored to accept the pipe. The diameter of the remaining bore is the same as the inside diameter of the pipe. The Flange is attached to the pipe by a fillet weld around the hub of the Flange. An optional internal weld may be applied in high stress applications. Its biggest use is in high-pressure systems such as hydraulic and steam lines.

DIMENSION SPECIFICATIONS AS PER THE INTERNATIONAL STANDARD ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE

Size:

½" to 60" (As Per Customer Requirement)

Class:

150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS DIN Standard ND-6,10, 16, 25, 40 Etc.

Material Grade:

Carbon Steel Socketweld Flange: ASTM A105, ASTM A 694 F42
Low Temperature Carbon Steel Socketweld Flange: A350 LF2/A350 LF3
Copper Alloys Socketweld Flange:
  1. ASTM / ASME SB 61 / 62 / 151 / 152
  2. C 70600 (CU -NI- 90/10)
  3. C 71500 (CU -NI- 70/30)
  4. UNS NO. C 92200, UNS NO. C 83600,UNS NO C 10100
  5. C 10200, C 10300, C 10800, C 12000, C 12200
Nickel Alloys Socketweld Flange: Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22, C276
Duplex Socketweld Flange: ASTM A 182 UNS F 44, F 45, F51, F 53, F 55, F 60,F 61
Stainless Steel Socketweld Flange: ASTM 182 F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.
Alloy Steel Socketweld Flange: ASTM SA 182 F1/F5/F9/F11/F22/F91

Value Added Services:

  1. Hot Dip Galvanizing
  2. Epoxy Coating
  3. Test Certificate As Per EN 10204 - 3.1 & 3.2

Related Images
